LIYUANJUN 15″ Touch Screen, LCD Display Touch Screen Monitor VGA POS USB Touchscreen with Adjustable Base, Multi-Function Display for Retail, Restaurant, Bar, Office 1024 * 768 Resolution

Specification

Material: ABS

Model: 1503M

Mount Type: Countertop

Standard Resolution: 1024*768

Number of Colors: 16.2M

Brightness: 300cd/m2

Response Time: 5ms

“View Angle”: Horizontal: 160° Vertical: 140°

Contrase Ratio: 500:01:00

Video Input Format: (Analog) RGB

Connector: VGA for Video Signal, USB for Touch

Touch Interface: USB

Frequency: 30~80KHz/60~75Hz

External Power Supply:100 to 240V (DC 12V) 2.6A

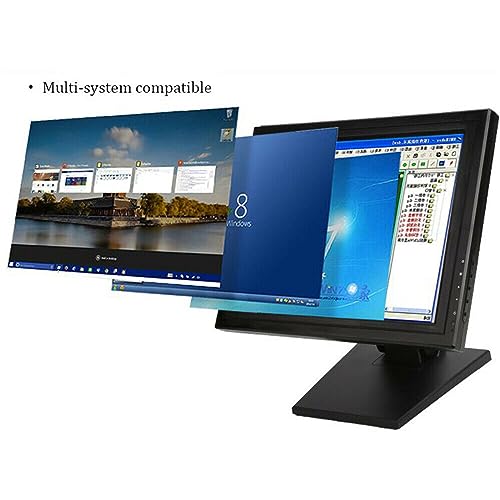

Compatible System: Windows(XP/7/8/10)

Operation Environment:

Workable Temperature: -10 to 60°C /14-140℉

Storage Temperature: -10 to 60°C/14-140℉

Operate Relative Humidity: 20% to 80%

Storage Relative Humidity: 10% to 90%

Touch Model: Resistive Touch

Duration:50000hours

Touch Validity: >5,000,000

N.W: 4.5kg/9.92lbs/pcs(Include Stable Mental Base)

Power Consumption: 35W

OSD Control: AUTO, +, COLOR, -, MENU, Brightness, Contrast Ratio, Auto Adjustment, Phase Position, Clock, Languages, Function, Install, Reset

Touch Response Time: 2ms

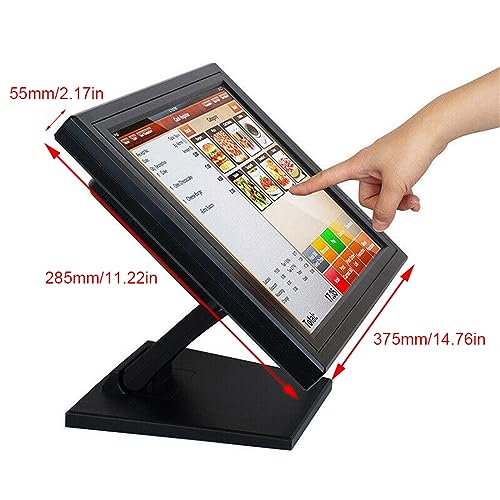

Monitor Size(Not Include Base): 375*285*55mm/15*11.22*2.17inch

Display Area: 304*228mm/11.97*8.98in

Each Unit Box Size: 420*370*155mm/16.54*14.57*6.10inch

Power Cord Length: 1.2-1.5m/3.94-4.92ft

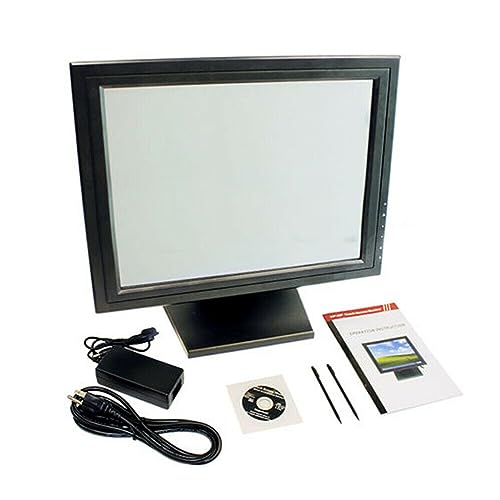

Package Included

1* Touch Screen LCD Display

1* Power Adapter

1* Power Cord

1* VGA Signal Cable

1* USB Cable

1* English Manual

1* English Quick Start Guide

1* CD-ROM for Touch Screen Driver

1* Stylus Pen

Notes

Please note that the length of the power cord may be different.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement.

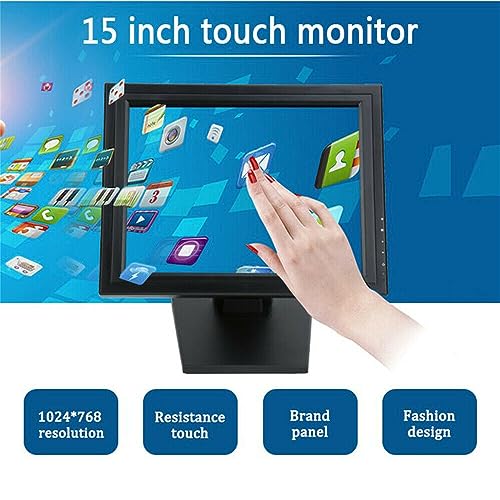

?【Good Performance】15-inch LCD screen has sensitive touch technology, high-definition technology, 1024*768 standard resolution, 2ms touch response time, >5,000,000 touch validity. The OSD control system can improve the accuracy of screen touch, allowing you to experience excellent color display, good true color images, protect your eyes, and provide more convenience for your use.
?【Safe and Stable】The touch screen display is not affected by moisture, oil, and can effectively block 75% of light than ordinary displays, so you can use it safely. It has a unique cooling system, uniform heat dissipation holes, and resistive touch, which can protect the machine at any time, ensure stable operation, and prolong the service life. The arc design can take better care of your skin.
?【Simple Installation】Multi-function monitor has simple structure, complete accessories, and detailed instructions, allowing you to complete the installation and start using it quickly. In addition, when the product is connected to the host computer and the corresponding software is downloaded, it also has multiple functions such as checking seat availability, ordering food, background management, cash management, and inventory management.

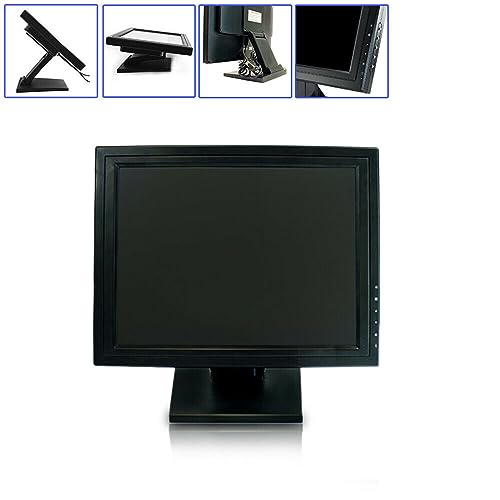

?【Unique Design】The ergonomic and stable base can be folded and adjusted, providing you with 160°horizontal and 140°vertical viewing angles for easy operation and viewing. The smooth surface allows you to easily remove stains and residue with a towel and water. The box with handles provides you with more convenience to store and retrieve items. The large size base makes it more stable and not easy to shake and tip over.

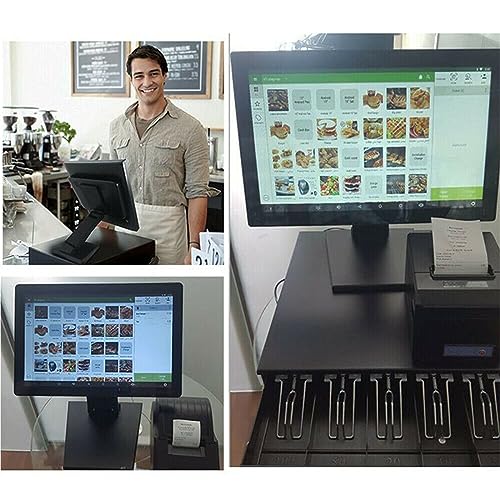

?【Wide Application】This 15 inch touch screen monitor is ideal for retail, point of sale (POS), VOD system, video on demand, shopping malls, hotels, clubs, markets, restaurants, supermarkets, hotels, etc. It has 4-wire resistive touchscreen and USB touchscreen interface for easy integration with various POS, client or PC systems. It’s also compatible with other mounting options that use the VESA standard hole pattern on the back of the monitor.
?【Warm Tips】Please install and use it in strict accordance with the instructions, and pay attention to the safety precautions inside. You need to notice danger of high voltage inside. Do not open the back cover. The user-serviceable parts are not included inside. If necessary, please contact a professional or authorized person. Please note that the length of the power cord may be different.
